Understanding KF, ISO, and Tri-Clamp compatibility is important when building, maintaining, or expanding laboratory and process systems.

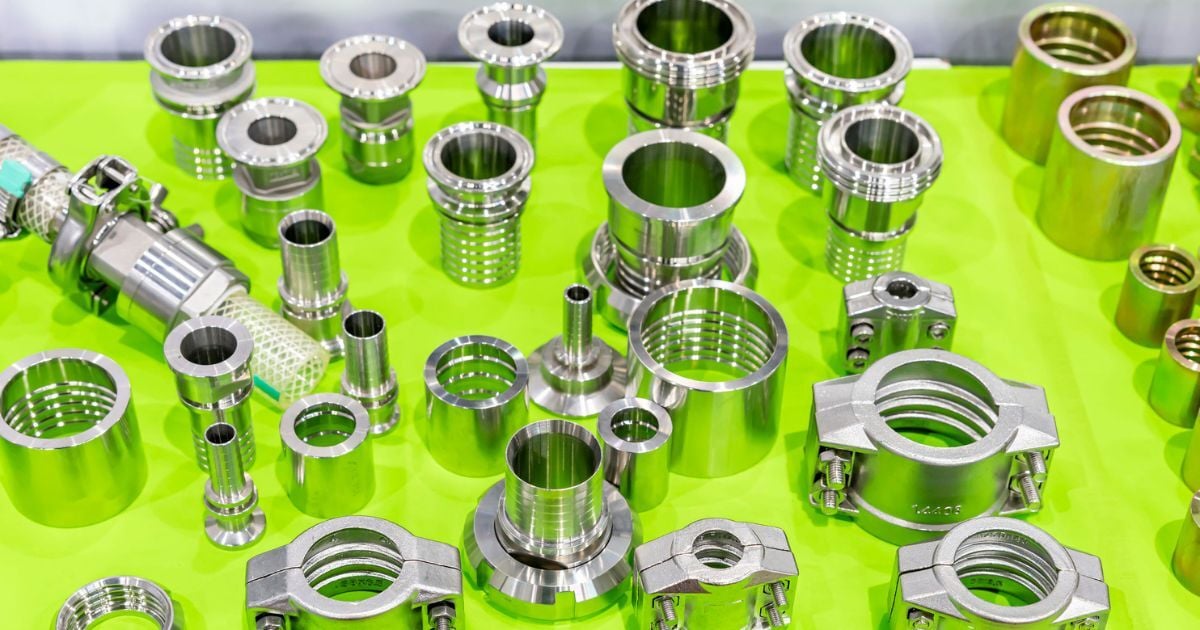

What Are KF, ISO, and Tri-Clamp Connections?

KF, ISO, and Tri-Clamp are connection standards used to join components in vacuum, laboratory, and process systems. Each standard uses different dimensions, sealing methods, and connection designs. Because of these differences, components are not directly interchangeable and may require adapters to connect properly.

Why Compatibility Matters

Understanding compatibility helps you avoid one of the most common equipment mistakes: ordering components that physically cannot connect.

For example, you might purchase a new vacuum pump with KF connections and later add equipment that uses Tri-Clamp fittings. Both components may work well individually, but they cannot connect directly without the proper adapter.

A clear understanding of KF, ISO, and Tri-Clamp standards makes it easier to plan future upgrades, source replacement parts, and build systems that work together without unexpected compatibility issues.

Understanding KF Connections

KF stands for Klein Flange, a widely used connection standard in vacuum systems. You may also see it referred to as NW (Nominal Width) fittings.

KF fittings are designed for vacuum applications where components need to be connected, removed, or reconfigured without extensive tools or complicated assembly procedures.

One reason KF fittings are so common in laboratory environments is their simplicity. The connection design allows users to quickly assemble or disassemble sections of a vacuum system during maintenance, cleaning, troubleshooting, or equipment upgrades.

How KF Connections Seal

A KF connection uses three main components:

1. A pair of matching KF flanges
2. A centering ring
3. A clamp

The centering ring sits between the two flanges and contains an elastomer O-ring. When the clamp is tightened around the flange assembly, the O-ring compresses to create a vacuum-tight seal.

This design offers several advantages:

• Fast assembly and removal
• Reliable vacuum sealing
• Easy replacement of sealing components
• Simple system modifications when equipment changes

Because the sealing surface is created by the O-ring rather than by metal-to-metal contact, KF connections are often easier to assemble than other vacuum fitting standards.

Common KF Applications

KF fittings are commonly found in laboratory and industrial vacuum systems where frequent access and flexibility are important.

Many labs also use KF fittings when connecting gauges, valves, traps, and other vacuum components. Their quick-connect design makes them useful for systems that may need regular maintenance or configuration changes.

Common KF Sizes

KF fittings are available in several standard sizes. The most common include:

• KF-16
• KF-25
• KF-40
• KF-50

The number generally refers to the nominal diameter of the connection. As system flow requirements increase, larger fitting sizes are often used to reduce restrictions and support system performance.

When selecting KF vacuum fittings, verify that all connected components use the same flange size. Even though two parts may both use the KF standard, a KF-25 component will not directly connect to a KF-40 component without an adapter.

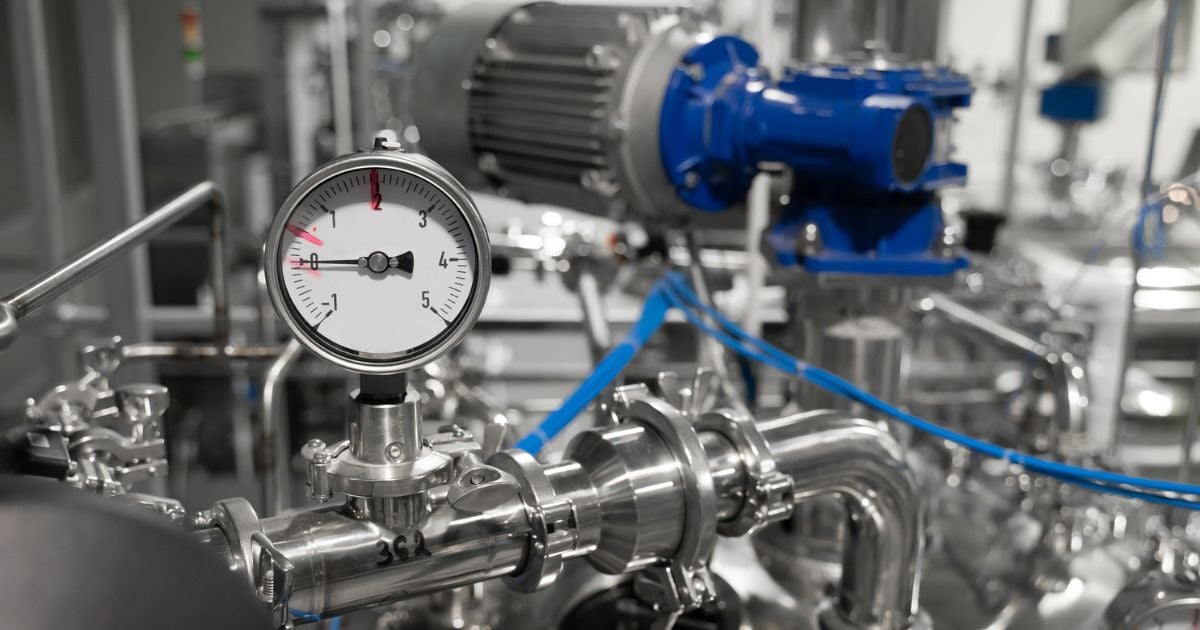

Understanding ISO Connections

While KF connections are often found on smaller laboratory equipment, ISO fittings are designed for systems that require larger connection diameters and higher flow capacity. ISO connections also use standardized dimensions, allowing compatible components from different manufacturers to work together within the same vacuum system.

You will often encounter ISO fittings on larger pumps, chambers, and vacuum equipment where the connection size needed exceeds the practical range of standard KF fittings.

How ISO Connections Differ from KF

KF and ISO fittings serve similar purposes, but they are designed for different system requirements.

The most noticeable difference is size. ISO fittings are available in larger diameters, making them suitable for applications that require greater conductance and higher gas flow rates.

ISO connections also use different hardware and clamping arrangements than KF fittings. While KF systems typically rely on a single quick-clamp design, ISO systems often use multiple clamps or bolted retaining hardware to secure larger flange assemblies.

Compared to KF fittings, ISO connections generally offer:

• Larger connection diameters
• Greater flow capacity
• Support for larger vacuum chambers and equipment
• Connection options suited for higher-capacity vacuum systems

Because of these differences, KF and ISO components are not directly interchangeable without the proper adapter.

Common ISO Applications

ISO fittings are commonly used in vacuum systems where larger connection sizes and increased flow capacity are needed.

You may find ISO connections on research and development systems, large-scale vacuum pumping systems, and pilot and production-scale equipment.

As vacuum systems grow in size, ISO fittings often become a practical choice because they allow components to move larger volumes of gas while maintaining vacuum performance.

Common ISO Sizes

Several ISO flange sizes are commonly used throughout laboratory and industrial applications, including:

• ISO-63
• ISO-100
• ISO-160
• ISO-200

The number generally corresponds to the nominal diameter of the flange opening. Larger sizes are typically used as system capacity, chamber volume, or pumping requirements increase.

When selecting ISO vacuum fittings, verify both the flange standard and size before purchasing replacement parts or adapters. Even within the ISO standard, different sizes require matching components to create a proper connection.

Understanding Tri-Clamp Connections

A Tri-Clamp fitting is a sanitary connection standard commonly used in industries where cleanliness and product purity are important. Unlike KF and ISO fittings, which are primarily designed for vacuum systems, Tri-Clamp connections are widely used in process systems that transport liquids, gases, and other materials.

You will often find Tri-Clamp fittings used as pipe fittings and tubing connectors throughout sanitary processing systems.

How Tri-Clamp Connections Seal

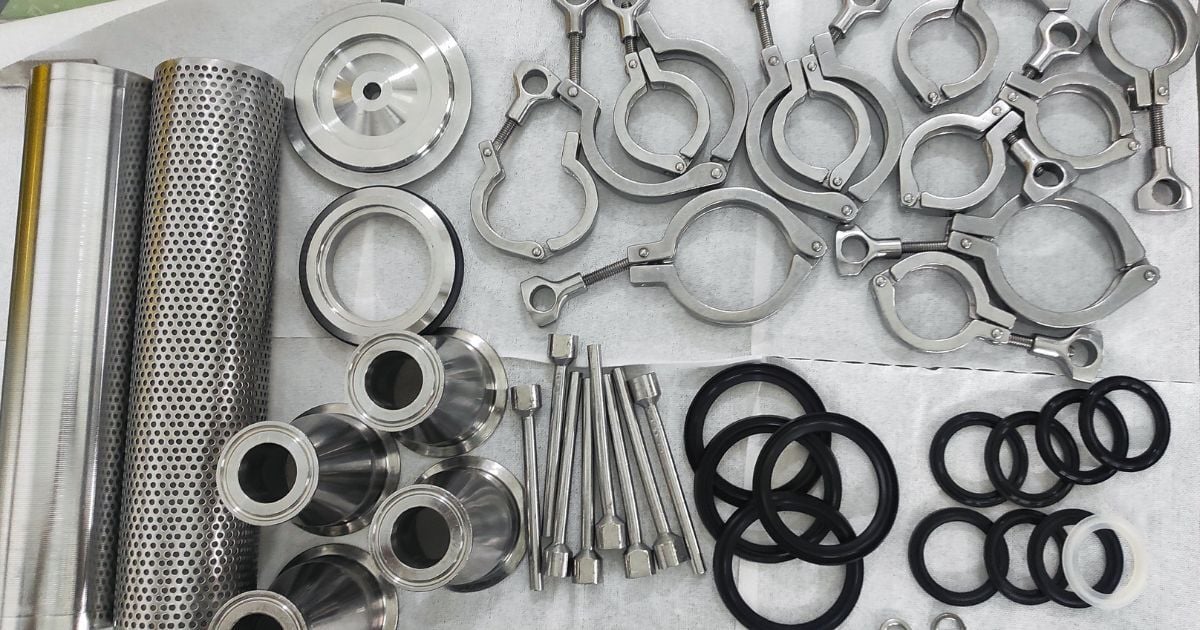

A Tri-Clamp connection consists of three primary components:

1. Two matching Tri-Clamp ferrules
2. A gasket positioned between the ferrules
3. A stainless steel clamp that secures the assembly

When the clamp is tightened, the ferrules compress the gasket to create a sealed connection.

One reason Tri-Clamp systems are so widely used is their straightforward assembly process. Many connections can be installed or removed quickly with minimal tools, making routine maintenance and cleaning easier.

Because connections can be opened and reassembled quickly, Tri-Clamp systems are often considered a type of quick-connect fitting for sanitary process environments.

Common Tri-Clamp Applications

Tri-Clamp fittings are used across many industries where cleanliness, inspection access, and process flexibility are important.

Common applications include pharmaceutical manufacturing, biotechnology facilities, or food processing systems. Many process equipment manufacturers use Tri-Clamp connections because they facilitate routine cleaning and simplify equipment servicing.

Tri-Clamp fittings are also frequently found in systems that require aseptic processing, where reducing contamination risks is a major priority.

Why Tri-Clamp Is Popular

Tri-Clamp fittings remain one of the most widely used sanitary connection standards because they balance simplicity, cleanliness, and serviceability.

Key advantages include:

• Cleanability – Smooth internal surfaces make cleaning easier and help reduce areas where material can accumulate.
• Fast maintenance – Connections can be opened, inspected, and reassembled quickly, reducing downtime during service.
• Sanitary design – The connection style is well-suited for applications that require high cleanliness standards and routine inspection.

For many pharmaceutical, biotechnology, and industrial applications, Tri-Clamp fittings provide a practical way to build systems that are both easy to maintain and expand as process requirements change.

KF vs ISO vs Tri-Clamp

KF, ISO, and Tri-Clamp connections are designed for different types of equipment and operating environments. The table below summarizes the key differences and can serve as a quick reference for evaluating compatibility.

Where Labs Commonly Run Into Compatibility Problems

Many connection issues happen when components appear compatible at first glance but follow different standards. Understanding a few common mistakes can help you avoid ordering the wrong parts and prevent delays during installation or equipment upgrades.

Assuming Similar Sizes Mean Compatibility

One of the most common mistakes is assuming that two connections with similar dimensions will fit together.

For example, a KF fitting and a Tri-Clamp fitting may appear close in size when viewed side by side. However, they were designed around different standards and use different sealing methods. Factors such as flange geometry, sealing surfaces, gasket placement, and clamp design all affect whether two components can connect properly.

Before purchasing fittings or adapters, verify the actual fitting standard rather than relying on measurements or visual estimates.

Mixing Vacuum and Sanitary Components

Another common issue occurs when vacuum equipment and sanitary process equipment need to be connected within the same system. But vacuum systems and sanitary process systems are built for different operating requirements.

Vacuum connections such as KF and ISO fittings are designed to maintain vacuum integrity. Tri-Clamp connections are designed around cleanability, product handling, and sanitary operation. Because of these differences, the sealing components and connection methods are not the same.

When a system includes both vacuum and sanitary equipment, specialized adapters are often required to create a reliable transition between standards.

Ordering Replacement Parts by Appearance Alone

Many fittings look surprisingly similar in product photos or equipment diagrams. This can create problems when replacement parts are ordered based solely on appearance. Even small differences can prevent a connection from sealing correctly.

Common examples include:

• Selecting the wrong flange size
• Confusing KF and ISO components
• Ordering clamps designed for a different standard
• Purchasing gaskets or O-rings that do not match the connection type

When replacing components, it is best to confirm the fitting standard, flange size, and sealing hardware before placing an order.

Expanding Existing Systems Without Checking Standards

Compatibility issues often appear during system expansion projects. A lab may add a new vacuum pump, filtration assembly, reactor, or piece of process equipment without realizing that it uses a different connection standard than the existing setup.

This becomes even more common with older systems that have been modified over time. For example, a facility may have legacy equipment that uses one standard, while newer equipment uses another. The mismatch may not become obvious until installation begins.

Before adding new components, verify:

• The connection type used by existing equipment
• Flange sizes throughout the system
• Required clamps, gaskets, and sealing components
• Whether adapters will be needed between connection types

Taking a few minutes to confirm compatibility before ordering will save significant time and expense later. It also makes future maintenance, upgrades, and equipment integration easier.

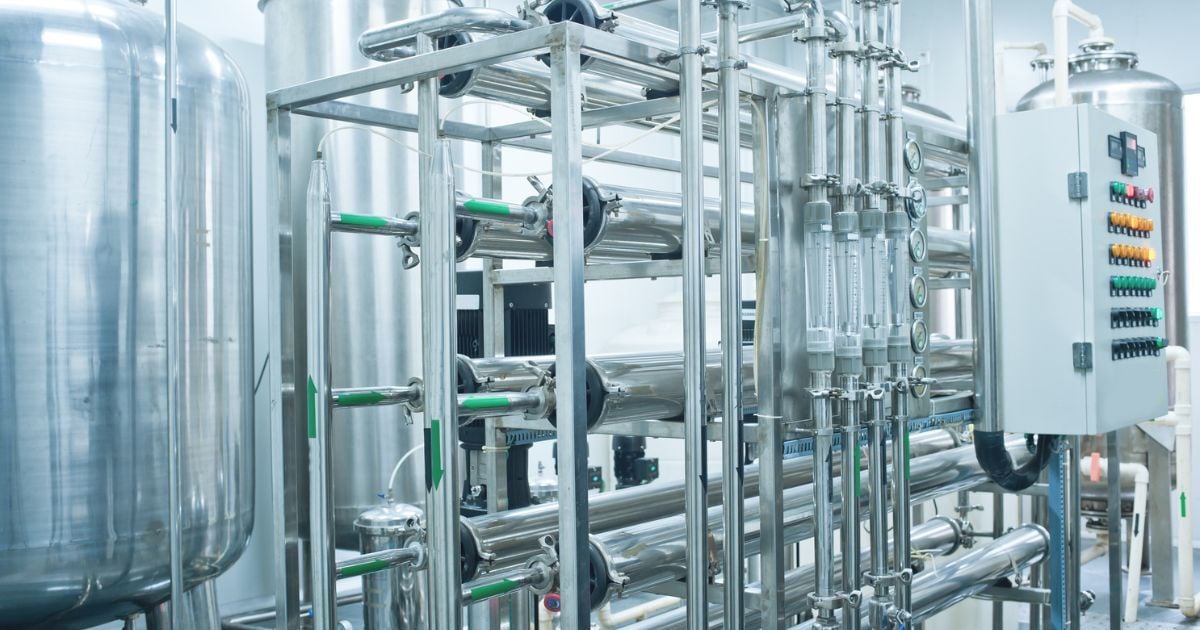

When Adapters Make Sense

Adapters provide a practical solution when two compatible pieces of equipment use different connection standards. Instead of replacing existing equipment, an adapter allows you to connect components designed for different flange types, fitting standards, or system requirements.

This can simplify equipment upgrades, support system expansion, and help integrate components from multiple manufacturers.

Connecting Different Standards

Adapters are commonly used when a system supports multiple fitting standards.

Some examples include:

• KF to Tri-Clamp adapters for connecting vacuum equipment to sanitary process systems
• ISO to KF adapters for connecting larger vacuum systems to smaller vacuum components
• Transition fittings that allow equipment from different manufacturers to work together

For example, a vacuum pump may use KF vacuum fittings while a connected vessel uses Tri-Clamp connections. Rather than replacing either component, an adapter can create the transition between the two standards.

Similarly, a larger vacuum chamber with ISO connections may need to connect to gauges, valves, or accessories that use KF fittings. An adapter allows those components to work together within the same system.

Common Adapter Applications

Adapters are used throughout laboratory, extraction, and industrial environments where equipment compatibility is important.

Common applications include:

• Vacuum processing systems that combine equipment with different vacuum fitting standards
• Extraction systems that integrate vacuum and sanitary components
• Pilot-scale and production equipment that require transitions between connection types
• Hybrid equipment setups built from components sourced from multiple manufacturers
• System upgrades where new equipment uses a different connection type than the existing equipment

In many cases, adapters provide a more cost-effective solution than replacing otherwise functional process equipment.

What to Verify Before Purchasing an Adapter

Before ordering an adapter, verify a few key details to avoid compatibility problems.

Connection Standard

Confirm the fitting standard on both sides of the connection. For example, identify whether the equipment uses KF, ISO, or Tri-Clamp connections rather than relying on appearance alone.

Size

Verify the flange or fitting size for each component. Even within the same standard, different sizes require different adapters.

Examples include:

• KF-25 to KF-40
• ISO-63 to KF-50
• KF-25 to 1.5-inch Tri-Clamp

Process Requirements

Consider how the adapter will be used within the system. Questions to evaluate include:

• Is the connection part of a vacuum system?
• Will the connection be exposed to process materials?
• Does the application require sanitary cleaning procedures?
• Are temperature, pressure, or chemical compatibility factors important?

Reviewing these requirements before purchasing helps you select an adapter that supports both your system's connection type and operating conditions.

Understanding Standards Helps Prevent Costly Mistakes

A few minutes spent confirming compatibility can prevent expensive mistakes and help your system perform as intended.
