How a Rotary Evaporator Transforms Your Lab Processes

Posted by USA Lab on Jul 22nd 2025

A rotary evaporator, or rotovap, is a lab tool that gently removes solvents from a liquid mixture, quickly, and with less heat. It’s used in chemistry labs, extraction processes, and even food science.

How It Works

The rotary evaporator works by lowering the pressure inside the system using a vacuum, which lets solvents boil at much lower temperatures than they normally would. That’s a big deal when working with heat-sensitive materials like plant extracts, acids, or essential oils.

Here’s a quick breakdown of the primary components:

  1. Rotating flask – Holds your liquid sample.
  2. Motor – Rotates the flask steadily during the process.
  3. Heated water bath – Gently warms the flask to help the solvent evaporate. You can control the temperature for delicate compounds.
  4. Condenser – Cools the vapor back into a liquid so it can be collected. Usually cooled with water or a recirculating chiller.
  5. Receiving flask – Catches the condensed solvent.
  6. Vacuum pump – Lowers the pressure inside the system, lowering the solvent's boiling point.

The spinning flask spreads the liquid into a thin layer, increasing the surface area to improve evaporation. Meanwhile, the heated water bath and reduced pressure work together to gently and efficiently remove the solvent without damaging your sample.

All of these parts work together to help you recover your solvent or leave it behind, depending on what you need.

Benefits of Using a Rotary Evaporator

Here’s how a rotovap helps streamline the work in your lab.

1. Faster Solvent Recovery and Sample Concentration

One of the biggest perks? Speed. A rotary evaporator removes solvents much faster than traditional evaporation methods.

Spinning the flask and lowering the pressure increases the surface area and reduces the solvent's boiling point. That means less waiting around and more throughput, which is especially useful if you work with multiple runs or time-sensitive materials.

2. Better Temperature Control Protects Sample Quality

Delicate compounds don’t always like heat. With a rotovap, you can control temperature using the water bath and vacuum.

This keeps your samples from degrading or reacting under high heat. It’s ideal for preserving essential oils, plant extracts, or heat-sensitive organic materials.

3. Energy Efficiency with Evaporative Cooling

Lower temperatures don’t just help your samples. They also save energy. Because the boiling point drops under vacuum, you don’t need to crank up the heat.

That’s where evaporative cooling comes into play: the system uses less energy to evaporate solvents, which is especially helpful for labs looking to cut utility costs or operate more sustainably.

4. Safer and More Repeatable Lab Processes

Rotary evaporation is a closed system, which means less exposure to fumes and flammable solvents. Many units also include digital controls, safety cutoffs, and break-resistant glass.

Once you dial in your settings (temperature, rotation speed, and vacuum), you can confidently repeat the same process. Consistency is key for research labs, quality control, or scaled-up production runs.

Rotary Evaporation vs. Traditional Distillation

At first glance, rotary evaporation might seem like a fancy version of distillation. But there are some key differences.

Feature

Rotary Evaporation

Traditional Distillation

Boiling Point

Lowered using a vacuum

At atmospheric pressure

Heating

Gentle water bath

Direct or oil-based heating

Evaporation Surface

Thin film (faster)

Bulk liquid

Speed

Faster and more efficient

Slower

Use Case

Small-scale solvent removal

Larger-scale purification or separation

In short, a rotary evaporator lets you recover solvents or concentrate samples more gently and with better control.

Common Applications Across Lab Environments

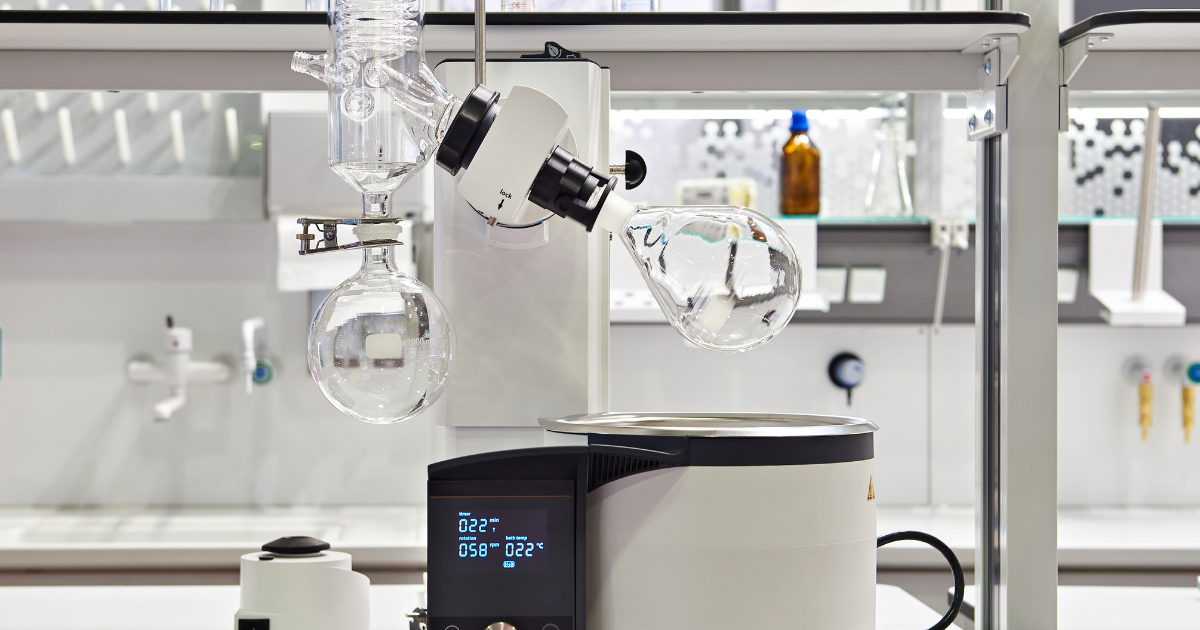

A small rotary evaporator being used in a lab setting.

Rotary evaporators aren’t just for chemistry labs. They show up everywhere, from classrooms to full-scale extraction facilities. Here are some of the most common ways labs use them.

1. Botanical and Chemical Extraction

Rotovaps are a go-to tool for solvent recovery in botanical extraction. After soaking plant material in ethanol or another solvent, you’re left with a mixture that needs to be concentrated.

The rotary evaporator gently removes the solvent without damaging delicate compounds like cannabinoids, terpenes, or essential oils. It’s also used in chemical synthesis to clean up and concentrate reaction mixtures before proceeding to the next step.

2. Recrystallization and Purification

Need to isolate a pure compound from a solution? A rotary evaporator will help with recrystallization by concentrating the solution before cooling.

It's also helpful in purifying intermediates and removing unwanted solvents while keeping your target material intact. Because you can adjust the pressure and temperature, it’s especially handy when working with compounds that degrade easily under heat.

3. Educational Labs and R&D

In teaching labs, rotary evaporators give students hands-on experience with real lab equipment. They learn about pressure, phase changes, and safe solvent handling – all in one process.

In research and development labs, rotovaps test new formulations, run pilot extractions, and speed up process development.

4. Industrial Use in Large-Scale Production

An industrial rotary evaporator scales up for bigger operations. These models handle tens to hundreds of liters at a time, making them essential in commercial extraction, food processing, and pharmaceutical production.

Whether recovering ethanol from a CBD extract or concentrating flavors for a beverage product, these high-volume units help keep operations efficient and consistent.

Choosing a Rotary Evaporator for Your Lab

The best rotary evaporator for your lab depends on what you’re working with, how often you use it, and how much solvent you need to remove. Here’s a quick guide to help you decide.

1. Pick the Right Volume and Flask Size

The size of your rotary evaporator usually comes down to the volume of your flask. Here are a few standard options:

  • 5L – Great for small-scale extractions, testing, or R&D labs. Easy to use and clean.
  • 20L – A solid mid-range size for growing operations or regular batch work.
  • 50L – Built for industrial labs or commercial production where speed and volume matter.

If you're running the same process daily or scaling up your business, going bigger will save time in the long run.

2. Manual vs. Motorized Lift

The lift raises and lowers the flask into the water bath. You have two main types:

  • Manual lift – Budget-friendly and reliable, but requires hands-on adjustment.
  • Motorized lift – Push-button control makes adjusting faster and easier, especially for large flasks or high-throughput labs.

A motorized lift will be a time-saver if you’re running back-to-back extractions or dealing with heavier glassware.

3. Integrated vs. Separate Temperature Control

Some rotary evaporators have built-in heating and cooling controls, while others need external chillers or circulators.

  • Integrated systems save space and simplify setup. They’re ideal for labs with limited bench space.
  • Separate units offer more flexibility, especially if you already have lab chillers or want to fine-tune each part of the process.

Either setup works. It just depends on how much control and customization you need.

Maximize Output, Minimize Waste with Rotary Evaporation

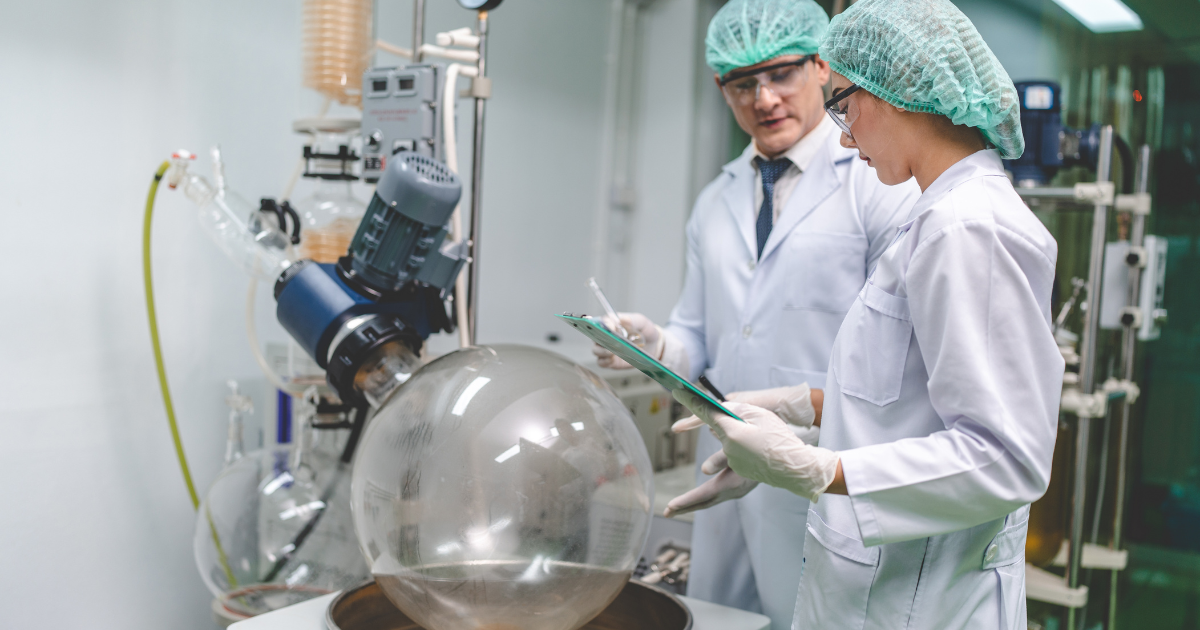

Two scientists discussing the rotary evaporator.

Rotary evaporators do more than just remove solvents. They speed up workflows, protect sensitive compounds, and make everyday lab tasks more efficient and repeatable. Whether extracting plant materials or scaling up production, a rotovap helps you get the job done faster, cleaner, and with more control.

Upgrade your setup or explore new options  – USA Lab’s rotary evaporators make it easy to find the right fit for your workflow.
